MWIR ANTI-REFLECTION COATING

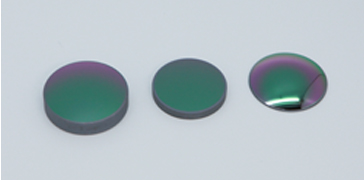

Procuct of MWIR AR Coating

	In the mid-infrared (3-5um) area AR Coating
Description Specifications Material Silicon Form type Lens, Window etc. Product size Variable Clear Aperture(%) >90% Thick Tolerance(mm) ±0.02mm Surface Accuracy(λ) λ/4 @632.8nm Surface Quality 20-10 Angle of Incidence 0~45˚ Coating 3.6um~4.9um T avg>98%

Procuct of MWIR AR Coating

	In the mid-infrared (3-5um) area AR Coating Coating for Germanium materials used in infrared optics of thermal imaging optical system
Description Specifications Material Germanium Form type Lens, Window etc. Product size Variable Clear Aperture(%) >90% Thick Tolerance(mm) ±0.02mm Surface Accuracy(λ) λ/4 @632.8nm Surface Quality 20-10 Angle of Incidence 0~45˚ Coating 3.6um~4.9um T avg>98%

IR LONG PASS FILRER COATING

Procuct of IR Long Pass Filter

	In the mid-infrared (3-5um) area Lonf Pass Filter Coating Coating for Silicon materials used in infrared optics of thermal imaging optical system
Description Specifications Material Silicon Form type Window Type Clear Aperture(%) >90% Thick Tolerance(mm) ±0.02mm Surface Accuracy(λ) λ/4 @632.8nm Surface Quality 20-10 Angle of Incidence 0˚ Coating 3.6um~4.9um T avg<0.5% 4.2~4.9um T avg>95%

IR LONG PASS FILRER COATING

Procuct of IR Long Pass Filter

The use of infrared optical systems often requires the protection of the exposed front surface for the
impact to the extreme environment. To this end, we provide a carbon (DLC) coating such as diamond, each
of the optical elements. In addition to the anti-reflection effect, the coating is also characterized by external
stress, a very high mechanical strength and high elasticity.
Optical components are coated with the silicon and germanium of 3-5㎛ to 8-12㎛ wavelength range.
In addition to the standard coating, we also provide a customized design.

	In the mid-infrared (3-5um) area DLC Coating
Description Specifications Material Silicon Form type Lens, Window etc. Product size Variable Clear Aperture(%) >90% Thick Tolerance(mm) ±0.02mm Surface Accuracy(λ) λ/4 @632.8nm Surface Quality 20-10 Angle of Incidence 0˚ Coating 3.6um~4.9um T avg>95%

IR ANTI-REFLECTION COATING

Procuct of IR AR Coating

	AR coating technology holds the far-infrared (8-12um) area Coating for Germanium materials used in infrared optics of thermal imaging optical system
Description Specifications Material Germanium Form type Window Type Clear Aperture(%) >90% Thick Tolerance(mm) ±0.02mm Surface Accuracy(λ) λ/4 @632.8nm Surface Quality <60-40 Angle of Incidence 0˚ Coating 8.0um~12.09um T avg>98%
